Overview

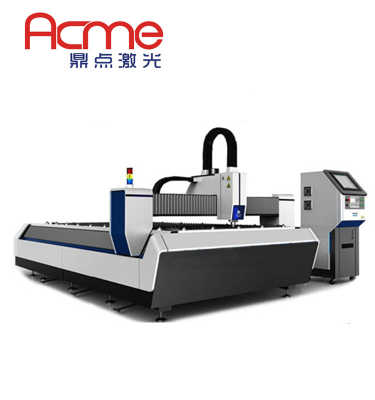

The fiber laser cutting stainless steel machine is the ideal entry-level machine for high-quality 2D laser cutting. It enables laser cutting without extensive training. The setup time is minimal. With the single-cutting-head strategy, a wide range of materials and sheet thicknesses can be cut reliably and economically.
Features
ENGINEERING
Unlimited Design Freedom - Precision-cut laser fabrications.
Customized - Precision laser cuts in any shape.
The laser beam does not wear out like other tools.
Cuts 15 mm thick steel.
SPEED
Minimizing time to market for your parts.
Cuts 61 feet per minute (18m/m).
Cost savings are possible because intricate cuts are closely spaced
Precision cutting tools process 5'x10' sheets - less scrap and waste.
QUALITY
Minimal distortion of the workpiece.
Intricate cuts can be made with precision.
Other sheet processing methods apply massive tools to the material.
Lasers can produce fine contours and structures with great precision.
What machine can do
High precision Cutting and Processing Carbon steel, Stainless steel, Aluminium, Brass, Copper,Galvanized Steel and other metal material sheet.
Can cut any pattern with professional software. You can draw it, machine can cut out.
Machine advantages
16-25mm whole steel plate weld strong machine bed made by FINCM. Milled by COLGAR, Aging and Heat treatment. More Stable and Reliable than pipe weld machine bed which other suppliers normal use.
Germany PA8000 Control System
The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator.
IPG/Raycus Laser Source, Raytools/Precitec Laser Head, PA8000/CYPCUT Control System, YASKAWA Servo Motor, MOTOREDUCE Gearbox, HIWIN Guide Rail, YYC Gear and Rack etc. All the part is World famous brand to guarantee machine great performance, stable and reliable.
More Details Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 9
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LP-1530
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Configuration List:
No. | Name | Brand |
1. | Laser Source | Germany IPG / China Raycus |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Dust removal and filtration devices | Optional |
Parameters:
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | X And Y axis positioning accuracy | ≤±0.03㎜ |
5. | Repeat positioning accuracy | ≤±0.02㎜ |
6. | Acceleration | 1G |
7. | Oiling systems | Automatic oiling |
8. | Cutting Area | 1530(1325)/2040/2060/1560/2560 (customize order acceptable) |
9. | Size | 4.3*3.2 *1.7m (Length * width * height) (1530) |
10. | G.W. | 6 Ton |
11. | Power supply | 380v50Hz ±10% |
12. | Red Positioning | Yes |
13. | Auxiliary gases | Oxygen, nitrogen, air |
14. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
15. | Laser tracking system | Automatic follow-up |
