- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Overview

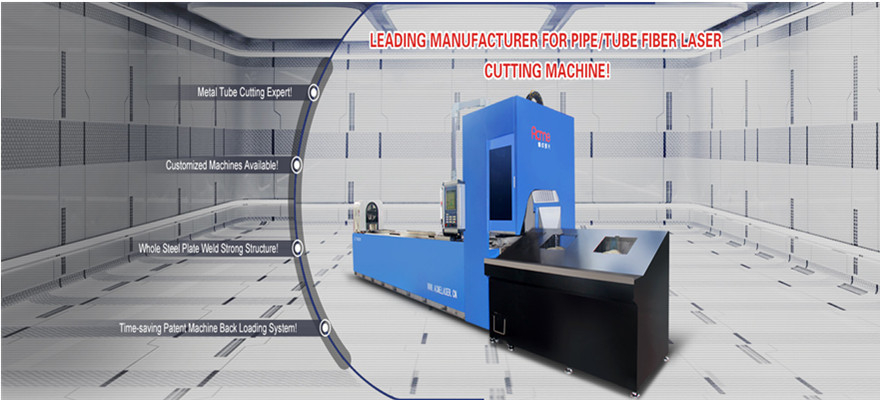

With over 10 years of experience in design and manufacturing experience in tube cutting technology, ACME builds specialized solutions for the Tube and Pipe industries, and the new Laser Tube Cutting Line is the ultimate solution for joining multiple machining processes in one system for maximum flexibility, automation, and performance.ACME fiber laser pipe tube cutter has a big use in varities industries like Fitness Equipment, we have many customers in this area, our machine bring high efficient processing metal tubes.
FEATURES
Capacity up to O.D. 152 mm
Cutting Lengths up to 2000mm to 10000mm (longer lengths by request)
Wall thickness from 0.6 - 25.0mm (Mild Steel)

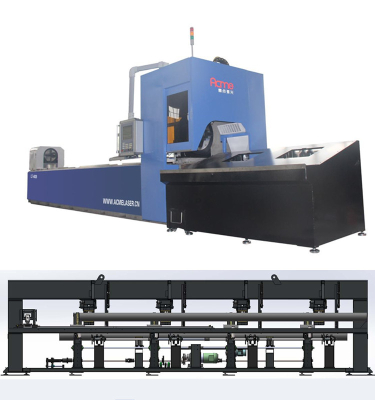

Automatic Bundle Loading System with Material Alignment
Automatic Unloading System with Conveyor
Equipped with 700W (Standard) to 4.0 kW (Optional) Laser Resonator
Multi-Axis CNC Controls with Touch Screen Interface
CAD-CAM system for Tubes and Profiles with built-in Nesting
Cutting for round, square, rectangle and various profile shapes
Enclosed Workstation for maximum safety
Automatic Distance Control
Laser Resonator Cooling and Fume extraction systems
Automatic Compensation after measuring of material
Seam Detection before laser cutting (Optional)
Mandrel for spatter extraction (Optional)
Feeding & unloading length detection (Optional)
Automatic Laser Cutting Path Planning (Optional)
WHAT MCAN DO
High Precision Cutting and Processing Carbon steel, Stainless steel,
Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
SUITABLE FOR
Round Tube: O.D.20 - 220
Square Tube: 20 x 20 – 180 x 180
Rectangular Tube: 20 x 20 and Max.O.D.220
Oval Tubes
L-shaped and C-shaped profiles
Mild Steel, Stainless Steel and Aluminum materials
More Details Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail（Waste） length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm (customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (can up to 320mm) |
20. | Laser tracking system | Automatic follow-up |
