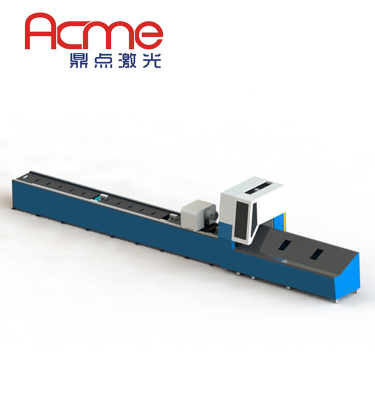

Laser Cutting Steel Tubes Machine, fully automated and CNC controlled they can process Stainless Steel and Mild Steel sections cleanly and consistently.
Overview
Faster processing of complex tube slotting and drilling, reducing production times
Fully CNC automated process ensuring no human error and more accuracy
High volume output creating ‘kits’ of parts ready for assembly
Saved money on tooling, production and machine costs
FEATURES
Automatic set-up and run
Round, rectangular, square and other profiles are standard
Standard components for easy service and maintenance
Random standard length
500W-4000W resonator
Lantek programming software
WHAT MCAN DO
High Precision Cutting and Processing Carbon steel, Stainless steel,
Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
MACHINE ADVANTAGE
16-25mm whole steel plate weld strong machine bed made by FINCM. Milled by COLGAR, Aging and Heat treatment. More Stable and Reliable than pipe weld machine bed which other suppliers normal use.
Self-centering Collet Chuck
The collet chucks position and hold your tubes in place without damaging the materials. The self-centering clamping system with continuous sensor monitoring adapts to every tube geometry.
A Constant View of the Machining Process
With the large window, the machining process of automatic tube laser is perfectly visible.
Automatic Stepped Rollers
The step rollers support the tubes while also moving them sideways, and adjust automatically to various diameters.
Germany PA8000 Control System
The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator.
Automatic or manual loading system from the back of machine--PATENT DESIGN
15-20s loading time, more faster than 60s side loading which other supplier use.
PACKAGE
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process. Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
More Details Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail(Waste) length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm (customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (can up to 320mm) |
20. | Laser tracking system | Automatic follow-up |
