Overview

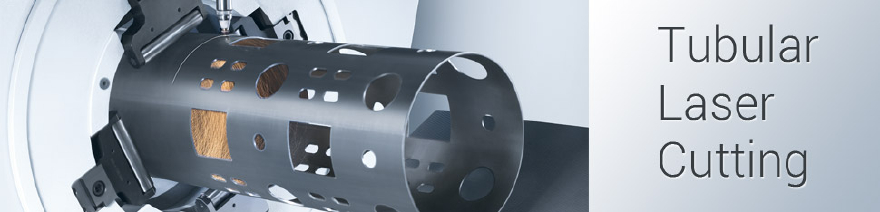

ACME LT-6020 Laser tube cutting machine for sale with fiber laser source can cut lines and holes with different diameters from different directions on metal tubes, now the fiber laser tube cutter for sale with good price.
Features
Our laser tube cutting machine can complete processing variety of tube shapes. After cutting the tube section does not require secondary processing, it can be welded directly, greatly reducing the production period, creating enormous value for the enterprise.
It can cut lines and holes with different diameters from different directions on the tubs and cut column and crossed lines at the end of branch pipe to meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
It can cut inclined with the main circular pipe.cut branch pipe intersected with the main circular pipe.
To realize angle groove face,square hole,waist-shaped holes cutting.
With very thin laser beam can be used on small part cutting and complicated patterns and reach to a polished effect.
What machine can do
High Precision Cutting and Processing Carbon steel, Stainless steel,
Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
Machine advantages
16-25mm whole steel plate weld strong machine bed made by FINCM. Milled by COLGAR, Aging and Heat treatment. More Stable and Reliable than pipe weld machine bed which other suppliers normal use.
Self-centering Collet Chuck
The collet chucks position and hold your tubes in place without damaging the materials. The self-centering clamping system with continuous sensor monitoring adapts to every tube geometry.
A Constant View of the Machining Process
With the large window, the machining process of automatic tube laser is perfectly visible.
Automatic Stepped Rollers
The step rollers support the tubes while also moving them sideways, and adjust automatically to various diameters.
Germany PA8000 Control System
The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator.
Automatic or manual loading system from the back of machine--PATENT DESIGN
15-20s loading time, more faster than 60s side loading which other supplier use.
More Details Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail（Waste） length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm (customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (can up to 320mm) |
20. | Laser tracking system | Automatic follow-up |
