- Size: 36
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Overview
Pipe laser cutting machine excels for an expanded range of laser-cut tube, pipe and structural applications. Available with IPG resonator, the Pipe laser cutting machine cuts a wide variety of tubes and pipes including round, square, rectangular and triangular. It can also process I and H beams, C-channel, angle iron and additional user-defined shapes from mild or stainless steel. This extensive range of capabilities makes the machine ideal for many industries and applications.
FEATURES

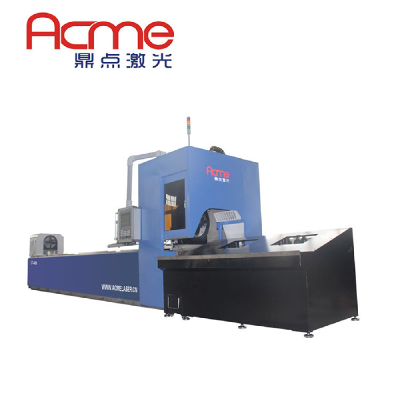

Acme LT-6020 Pipe Laser Cutting Machine gives us the flexibility to handle jobs of all sizes. It is a 5-axis machine that makes it possible to produce a wider variety of cuts. The 5-axis technology allows us to create precise angles and beveled edges.
Whether you need a long manufacturing run, a short run for a custom job or just-in-time production, Acme Tube Laser can help. Our laser cutter accommodates tubing in a wide range of sizes. Round, square and rectangular tubes, angle and channel steel and special shapes can be processed using this technology.
WHAT MCAN DO
High Precision Cutting and Processing Carbon steel, Stainless steel,
Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
MACHINE ADVANTAGE
Automatic centering pneumatic chuck made by LGmazak and HAAS.Accuray and quality are guaranteed. Other suppliers buy ready-make electrical chucks which are easy to break in practice.
Manual or automatic loading from back of machine—patent design.15-20s back loading time then 60s loading time from side
Germany original PA8000 control system. Other suppliers use Cypcut or Higerman. We have professional nesting software for angle and channel steel cutting.
The N.W. of our machine bed is 5t, made of 16-25mm whole sheet of steel with heat and release treatment. Others use welded steel tube machine bed.
More Details Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 36
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail（Waste） length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm (customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (can up to 320mm) |
20. | Laser tracking system | Automatic follow-up |
