- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
OVERVIEW

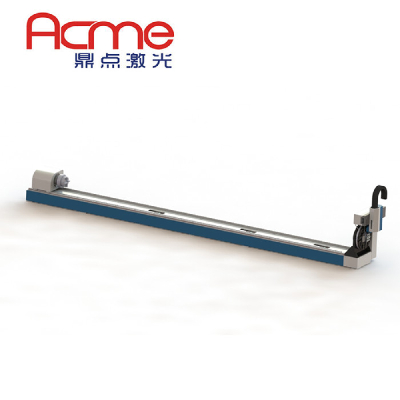

The technology of steel tube laser cutting machine involves the computerized direction of high-powered laser on structural tubing or metal piping while cutting assist gas expels the cut material. Our carbon steel pipe cutter also allows for the tubing to be electronically manipulated during cutting in order to achieve more complex, multi-features. The resulting cut is precise, repeatable and has a high-grade finish.
Metal tubing can then be bent and shaped after cuts to precise angles, and/or joined for the exact formations and strengths needed.
FEATURES
Automatic centering pneumatic chuck made by LGmazak and HAAS.Accuray and quality are guaranteed. Other suppliers buy ready-make electrical chucks which are easy to break in practice.
Manual or automatic loading from back of machine—patent design.15-20s back loading time then 60s loading time from side
Germany original PA8000 control system. Other suppliers use Cypcut or Higerman. We have professional nesting software for angle and channel steel cutting.
The N.W. of our machine bed is 5t, made of 16-25mm whole sheet of steel with heat and release treatment. Others use welded steel tube machine bed.
WHAT CAN DO
Cutting Carbon steel, Stainless steel, Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
MACHINE DETAILS
16-25mm machine bed is cut from whole steel panel with heat and aging treatment, milled by Italy COLGAR machining center with high precision, good stability, no deformation;
Self-centering pneumatic chucks instead of electrical chucks, with good reliability and durability;
Germany IPG lasers and PA system, and Yaskawa Servo, stable performance, quality guaranteed;
unique way of material feeding, saving time and labor costs. Automatic loading from back is available!
FAQ
1.WHAT MATERIALS CAN THE MACHINE CUT?
Tubes and pipes in metal, mainly for cutting on SS, carbon steel, Manganese steel, galvanized plate, alloy plate, rare metal.
2. WHAT ABOUT PAYMENT TERM?
T/T(50% 50% OR 30% 40% 30%),
TRADE ASSURANCE,
L/C
3. WHAT ABOUT GUARANTEE & SERVICE?
Two years guarantee of the whole machine.
CE and FDA certificate,the machines are produced according to standard.
We have excellent English speaking engineers. They can help you locally.
24 hours online service
4. DO YOU HAVE OTHER SIZES?
We have 6m,8m,10m and any customized sizes.
More Detsils Please Contact: Eric Liu WeChat/WhatsApp 0086 15662723162
- Size: 106
- Place of Origin: Jinan,Shandong
- Brand Name: dingdian1
- Model Number: LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail(Waste) length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm (customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (can up to 320mm) |
20. | Laser tracking system | Automatic follow-up |
